Professional Manufacture Of Reliable Nonwoven Machines

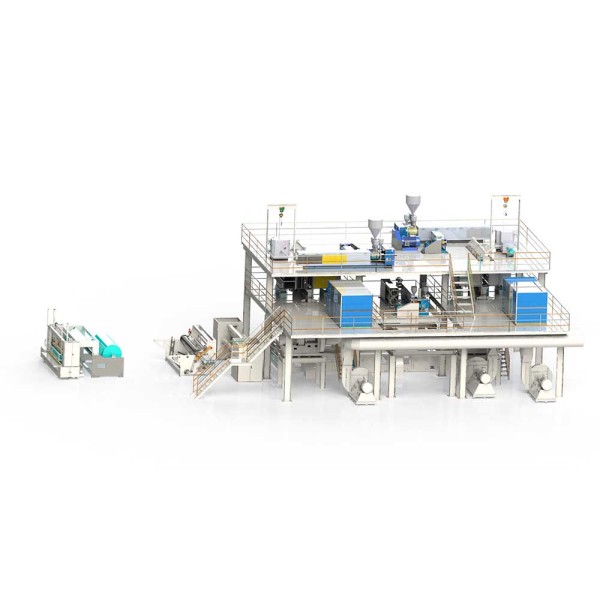

Sales of SMS Composite Nonwoven Line

Sales of SMS Composite Nonwoven Line
Sales of SMS Composite Nonwoven LineSales of SMS Composite Nonwoven LineSales of SMS Composite Nonwoven LineSales of SMS Composite Nonwoven LineSales of SMS Composite Nonwoven Line
CategoriesThree-Beam (SMS)
BrandASEN
Spunbonded Nonwoven:1.3 — 2.5 DAN
Fabric Width:1600mm/2400mm/3200mm
Consumption of Raw Materials:0.2%
Maximum Package Diameter:2000mm
Main material:Polypropylene chip
Product Gram:10-100g/m2
Machine Speed:20-450m/min
Yield:11t/Day(24h), calculated as 12g/ m2
Raw Material Main Index Requirements :PP
Weight:60-300t
About Average Power Consumption:1400-1800 KWH/Ton(Related with production width)
FOB portGuangzhou
Terms of PaymentL/C, T/T
Update Time2021-05-14
Detail Information
Product Description
Details Images
Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10; Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;
Automatic Slitting Machine
Speed:600-800 M/Minute; Min. Slitting width:80mm; Max. Rolling size:1500mm diameter; Auto tensile control:online; Auto meter counting:online; Original:CHINA;
Extrusion Machine
Aperture:90 300kg/h 1pc;
Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;
Automatic Winding Machine
Effective width:1600/2400/3200 mm; Rolling Speed:200-400M/Minute; Rolling Diameter:2000 mm; Original: CHINA;
Production Line Control Cabinet
Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;
Raw Material Dosing Machine
Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;
Candle Filtration Machine
Filtration Area: 3.5m²; Capacity: 650kgs/h; Filtration Chamber: 2 pcs (switch online); Original:CHINA;
Spinning Pump
Capacity:300-450Kg/H; Speed:40Rpm/Minute; Drive Motor:Siemens; Original: CHINA/GERMANY;
Spinneret
Hole size: 0.45mm; Hole Qty:12350-24500pcs; Material: SUS431; Original:CHINA/GERMANY;
Spinning Beam
Model:1600/2400/3200mm; Heating System:Oil/Electricity Heating; Distribution Design: big hanger type; Original:CHINA;
Embossing Calender Machine
Emboss Pattern: ovel/diamond/sesame/dot; Emboss Roll diameter: 450-520mm; Linear pressure: 30-125 N/mm; Original:CHINA/GERMANY;
Manufacturing Technique
Process of meltblown nonwoven production line
Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product
Product Paramenters
Model No.
AZX-M-1.6
AZX-M-2.4
AZX-M-3.2
M(Product width)
1600mm
2400mm
3200mm
Equipment Size
15*8.6*9.5m
15*9*9.5m
15*10*9.5m
Speed
150m/min
150m/min
150m/min
Gram Weight
10-180g/m²
10-180g/m²
10-180g/m²
Yield (according to 70g/m²)
4T/Days
7-8T/Days
9-10T/ Days
Model No.
AZX-S-1.6
AZX-S-2.4
AZX-S-3.2
S(Product width)
1600mm
1600mm
1600mm
Equipment Size
15*8.6*9.5m
15*8.6*9.5m
15*10*9.5m
Speed
200m/min
200m/min
200m/min
Gram Weight
10-180g/m²
10-180g/m²
10-180g/m²
Yield (according to 70g/m²)
4T/Days
7-8T/Days
9-10T/ Days
Model No.
AZX-SS-1.6
AZX-SS-2.4
AZX-SS-3.2
SS(Product width)
1600mm
1600mm
1600mm
Equipment Size
29*13.10m
30*14*10m
32*15*10m
Speed
300m/min
300m/min
300m/min
Gram Weight
10-150g/m²
10-150g/m²
10-150g/m²
Yield (according to 70g/m²)
9-10T/Days
13-14T/Days
18-19T/Days
Model No.
AZX-SSS-1.6
AZX-SSS-2.4
AZX-SSS-3.2
SSS(Product width)
1600mm
2400mm
3200mm
Equipment Size
31*20*10m
32*21.10m
34*22*10m
Speed
400m/min
400m/min
400m/min
Gram Weight
12-150g/m²
12-150g/m²
12-150g/m²
Yield (according to 70g/m²)
10-11T/Days
15-16T/Days
20-22T/Days
Model No.
AZX-SMMS-1.6
AZX-SMMS-2.4
AZX-SMMS-3.2
SMMS(Product width)
1600mm
2400mm
3200mm
Equipment Size
31*20*10m
32*21.10m
34*22*10m
Speed
500m/min
500m/min
500m/min
Gram Weight
10-150g/m²
10-150g/m²
10-150g/m²
Yield (according to 70g/m²)
9-10T/Days
13-14T/Days
18-19T/Days
Model No.
AZX-SSMMS-1.6
AZX-SSMMS-2.4
AZX-SSMMS-3.2
SSMMS(Product width)
1600mm
2400mm
3200mm
Equipment Size
31*20*10m
32*21.10m
34*22*10m
Speed
500m/min
600m/min
600m/min
Gram Weight
12-150g/m²
12-150g/m²
12-150g/m²
Yield (according to 70g/m²)
10-11T/Days
15-16T/Days
20-22T/Days
Application
Company Profile
Asen(Foshan)Technology Co.,Ltd is one of AZX Group Limited subsidiary company. It is a strong R & D, excellent design,professional production & sales and after-sales service in one company. We are specialized in manufacturing S(Spunbond),M(Meltblown),SS,SXS,SSS,SMS,SMMS ,SSMMS etc.type PP(Polyproplene) Spunbond & Melt blown Nonwoven Production line. Our group was established in 2009, Involve in the field of Nonwoven machine, Nonwoven fabric, Medical supplies etc., we are providing high-quality products and excellent services for global users.
Packing & Delivery
